Tesi Dual TOPO 6MM Mini Toggle Switch DPDT - Black
Tesi Dual TOPO 6MM Mini Toggle Switch DPDT - Black

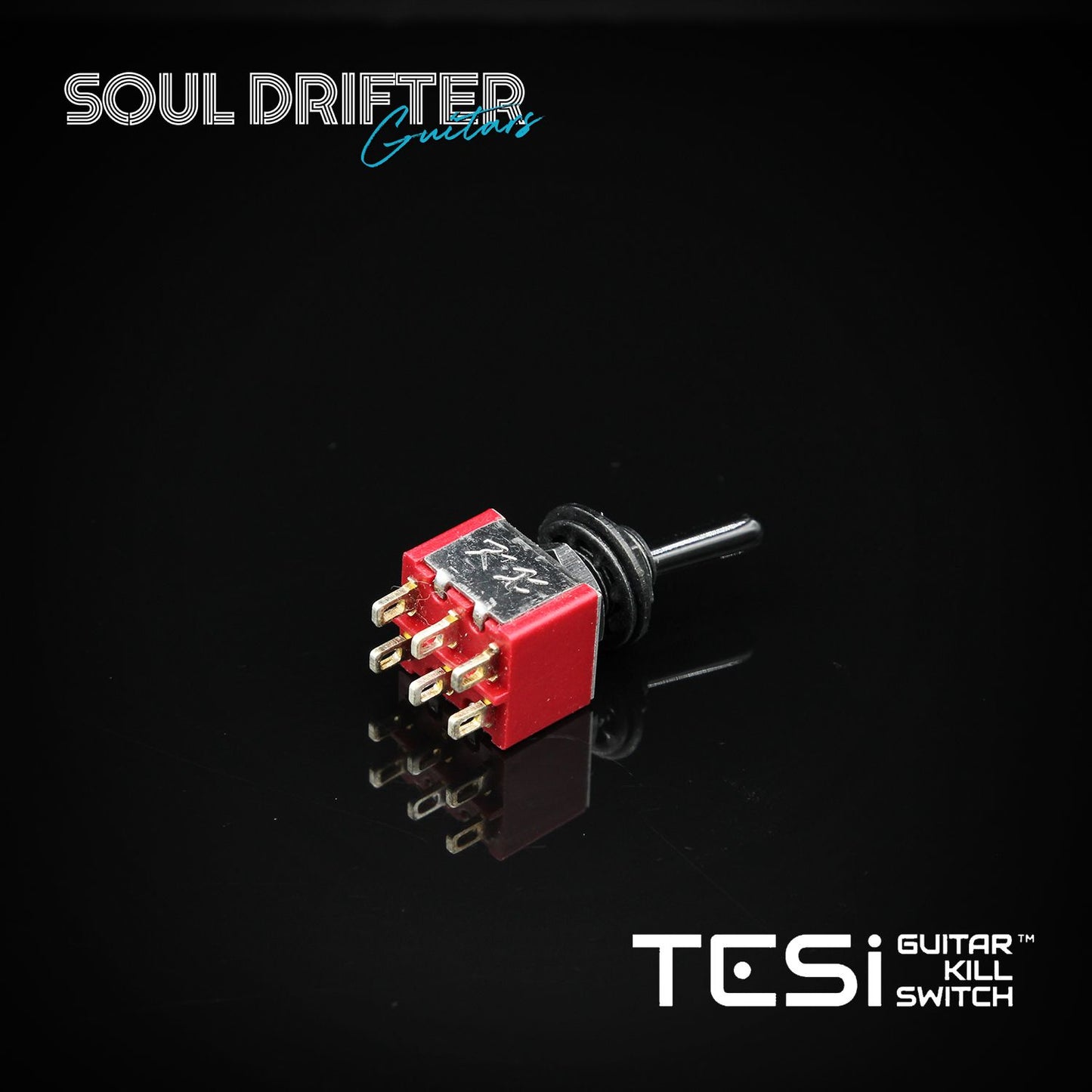

Tesi TOPO 6MM Toggle style Kill Switch is a quick and easy modification. The switch itself is heavy duty and built to last.
Specs:
- Type: On/On Latching Toggle Switch (DPDT)
- Operation Type: On/On with Center Common Terminal
- Housing Material: Thermoplastic
- Mounting hole Size: 6mm
- Mounting Panel Thickness: 1mm-4mm
- Operation Pressure: about 3n
- Operation Stroke: 2.0 mm
- Contact Resistance: 50 mOhm
- Mechanical Life: about 500,000 cycles
- Switch Rating: 6A/250VDC
This is a great mini-toggle switch that can be used as a kill switch, coil tap, or other on off switch.
The switch is easy to install. If you have the slightest bit of skill with a soldering iron you can do it yourself. If you do not have that skill, you should have a guitar repair person do it.
The mounting hole is much smaller than a standard volume or tone pot (6MM vs. 9MM).
The Dual TOPO does not have any wiring attached. This is the switch only.
Each Tesi Guitar Kill Switch is guaranteed against defect for one year from the date of sale. Contact us for more details.
The Tesi Switch Difference:

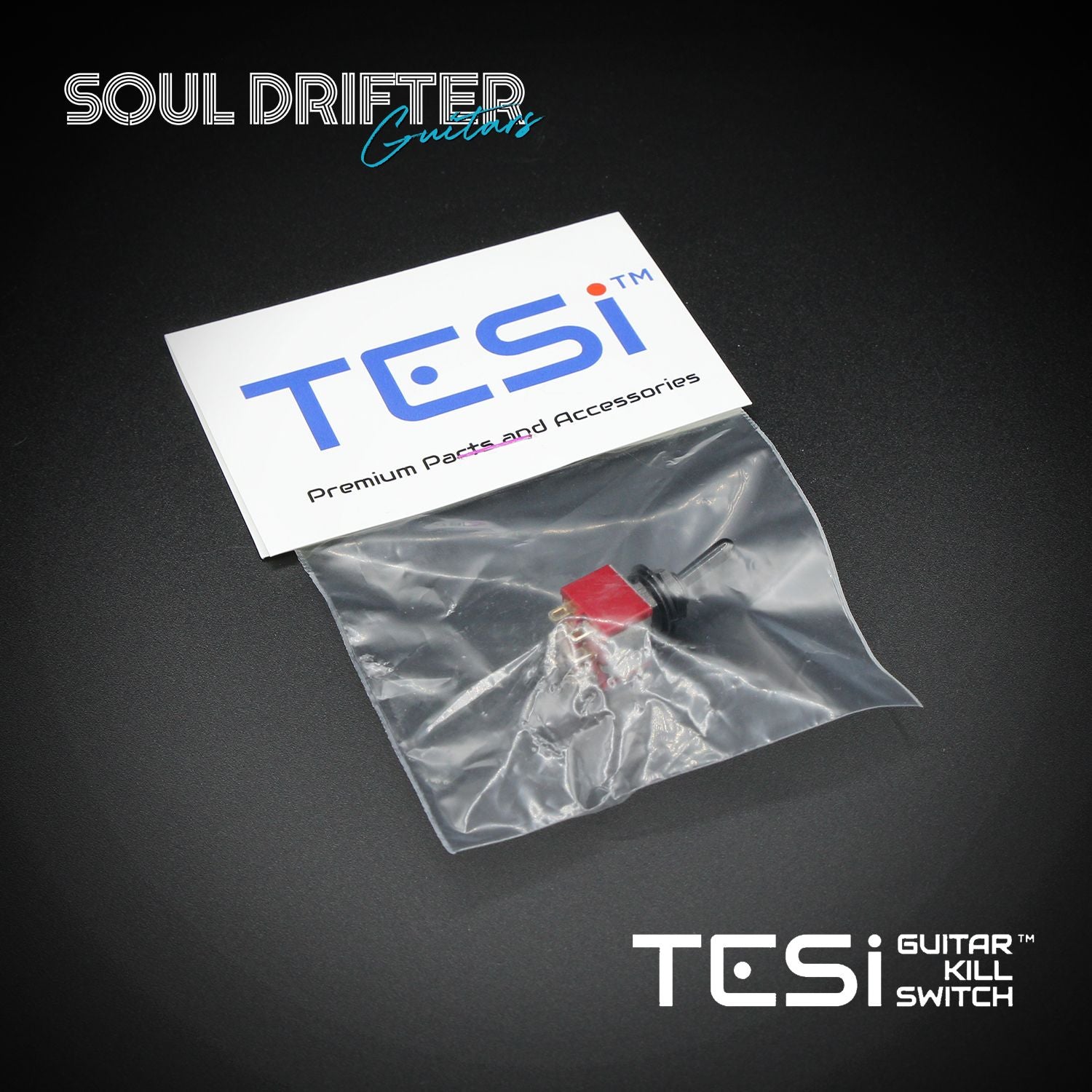

TESI tests every switch before packaging it. As a result, the failure rate is less than 1%. TESI package the TOPO in a vinyl zipper bag with a header card that includes basic installation instructions. We are always happy to help with installation questions.
