TESI Switch

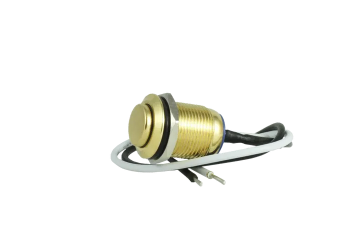

Tesi IDO 12mm Metal Momentary Push Button Guitar Kill Switch - Gold

Tesi IDO 12mm Metal Momentary Push Button Guitar Kill Switch - Gold

Regular price $31.00 AUD
Regular price $35.00 AUD Sale price $31.00 AUD
11% OFF Sold out
Tax included. Shipping calculated at checkout.

The IDO 12mm switch is a perfect fit for replacing a Les Paul style pickup selector, or just slightly larger than a standard pot hole.  The light touch and sleek look will fit any type of guitar and playing style.  Installation only requires two wires to be soldered to the output jack an no other changes need to be made to the electronics in the guitar.


  • Type: Momentary Push Button Switch
  • Operation Type: Normally Open (yes, this is correct for instrument kill switch operation. Included instructions show you how to wire it properly!)
  • Housing Material:
  •        Stainless Steel: Stainless Steel
  •        Black or Gold: Plated Brass
  •        Red, Blue, Purple: Anodized Zinc
  • Mounting hole Size: 12mm
  • Mounting Panel Thickness: 1mm-6mm
  • Operation Pressure: about 5n
  • Operation Stroke: 2.0 mm
  • Contact Resistance: 50 mOhm
  • Mechanical Life: 500,000 cycles
  • Switch Rating: 2A/36VDC

What does all this mean?  You're getting a tough switch that will last a long time in your instrument and look good doing it!

The switch is easy to install. If you have the slightest bit of skill with a soldering iron you can do it yourself. If you do not have that skill, you should have a guitar repair person do it.  The mounting hole is slightly larger than a standard volume or tone pot (12MM vs. 9MM) which means that if you decide to go back to your original setup, you don't have to buy a new pickguard or repair that hole in your wood.

This package comes with everything:

  • (1) Tesi IDO 12mm Momentary Guitar Kill Switch
  • (1) Tesi Quick-Connect wiring Bundle that includes:
  •       (1) 8" Black ground wire
  •       (1) 8" White hot wire
  • (1) Set of easy-to-follow wiring instructions

This switch can be used with active or passive pickups with no additional parts required.  Just solder the wires (already attached to the switch) and get ready for action! Each Tesi Guitar Kill Switch is guaranteed against defect for one year from the date of sale.  Contact us for more details.

The Tesi Switch Difference:

We test every switch before packaging it.  As a result, the failure rate is less than 1%.  We package the 12MM and larger switches in a custom cut foam block and place in a small box for protection.
